Custom Tile Work in Meridian — Kitchen Backsplash & Two Bathroom Floors

Custom Tile Work in Meridian — Kitchen Backsplash & Two Bathroom Floors

Ten Mile area, Meridian 2 weeks

Quick answer

Iron Crest Remodeling Group LLC completed this tile installation project in Ten Mile area, Meridian: budget range $8,000–$12,000. A multi-room custom tile project — a designer kitchen backsplash with hand-laid herringbone pattern, plus complete tile floor replacements in both the master and hall bathrooms.

Project Overview

A multi-room custom tile project — a designer kitchen backsplash with hand-laid herringbone pattern, plus complete tile floor replacements in both the master and hall bathrooms.

Project Details

Project Duration
2 weeks
Backsplash Area
42 sq ft
Bathroom Floors
2 rooms (135 sq ft)
Budget Range
$8,000–$12,000
Tile Patterns
3 distinct designs
Year Built
2012
Get a Free Estimate

The Challenge

The 2012 home had a plain painted drywall backsplash behind the kitchen range that was stained and impossible to clean. Both bathrooms had builder-grade 12×12 ceramic tile with cracked grout lines and several loose tiles caused by inadequate thinset coverage during the original installation. The homeowners wanted tile that felt custom and elevated without a full remodel of either room.

Our Solution

For the kitchen, we installed a 3×12 ceramic subway tile in a herringbone pattern from counter to ceiling behind the range, extending as a standard stack pattern across the remaining counter backsplash. A Schluter Jolly edge trim provided clean exposed edges. In both bathrooms, we removed all existing tile, inspected and repaired the underlayment, installed Ditra uncoupling membrane to prevent future cracking, and laid new large-format porcelain tile (12×24 in the master, 8×8 encaustic-look in the hall bath). All grout was mixed with a polymer additive for long-term stain resistance.

The Result

Each room now has a distinct design personality while sharing a cohesive neutral palette. The herringbone backsplash is the kitchen's new focal point, the master bathroom floor looks like natural stone, and the hall bath's patterned tile gives it boutique-hotel character. The Ditra membrane underneath means no more cracked grout lines.

Before & After

Drag the slider to compare the transformation of this tile installation project in Ten Mile area, Meridian.

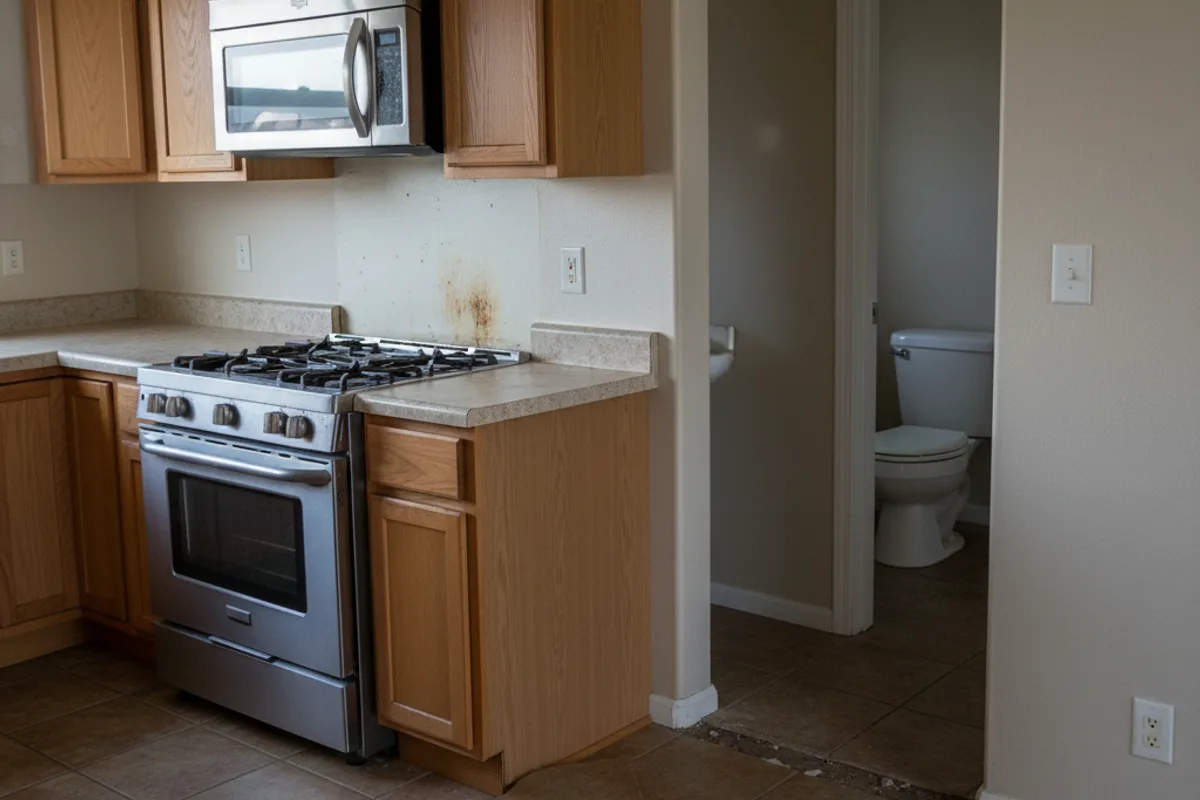

Before: original condition before tile installation

Before

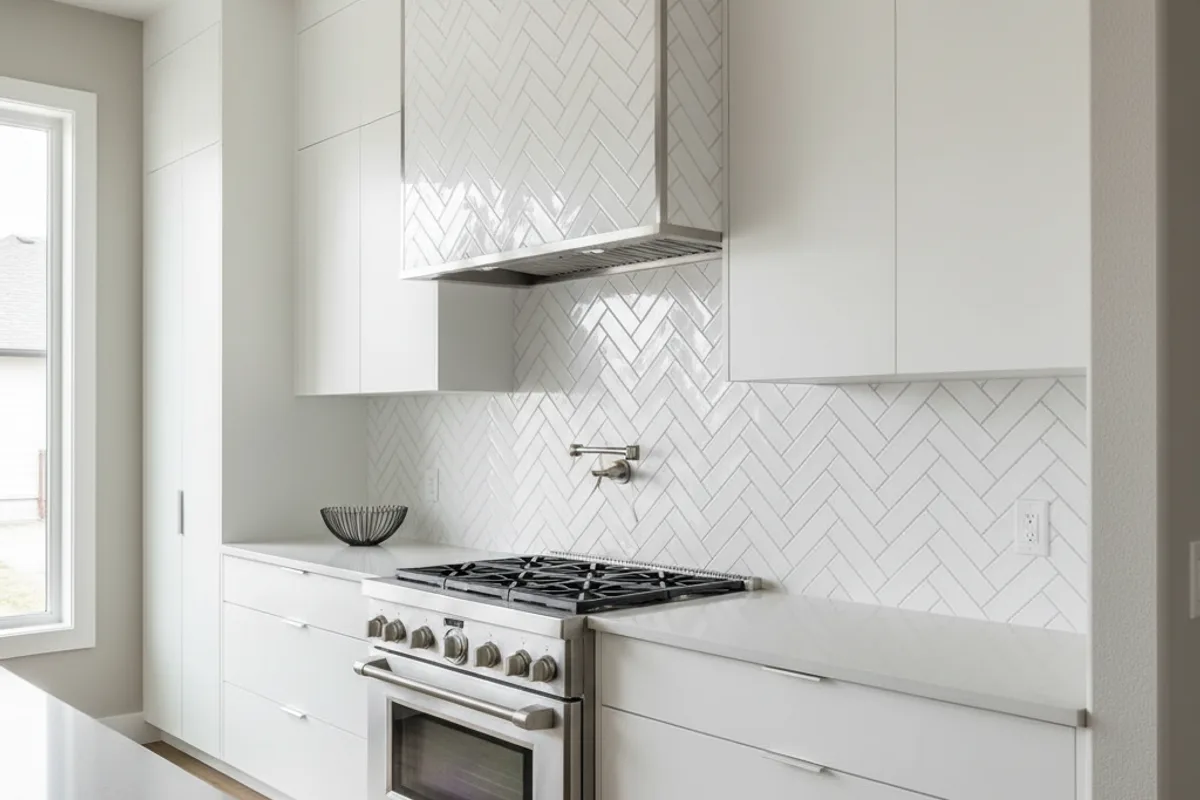

After: completed tile installation

After

Project Photos

Completed tile installation in Meridian

The completed project

Original condition before the tile installation in Meridian

Before: the original condition

Project Timeline

1

Design & Material Selection

1 week

On-site consultation, tile and grout color selection, layout planning for each room, material ordering

2

Kitchen Backsplash Prep

1 day

Wall prep, cement board installation behind range, layout lines for herringbone pattern

3

Kitchen Backsplash Tile

2 days

Herringbone tile behind range, stack bond on remaining walls, Schluter edge trim, grouting

4

Bathroom Demo & Prep

2 days

Old tile removal in both bathrooms, underlayment repair, Ditra membrane installation

5

Bathroom Tile Installation

3 days

Master bath 12×24 porcelain layout and install, hall bath 8×8 encaustic tile install, grouting

6

Sealing & Detail

1 day

Grout sealing, caulking at tub and wall transitions, threshold installation, cleanup

Key Features

Hand-laid herringbone pattern kitchen backsplash
Two complete bathroom floor replacements
Ditra uncoupling membrane for crack prevention
Large-format porcelain in master bathroom
Encaustic-look pattern tile in hall bathroom
Polymer-modified grout for stain resistance
Professional edge trim at all exposed edges
Coordinated neutral palette across three rooms

Materials Used

3×12 ceramic subway tile (matte white) for kitchen backsplash
12×24 porcelain tile (stone-look, honed finish) for master bath
8×8 encaustic-look porcelain tile for hall bath
Schluter Ditra uncoupling membrane
Schluter Jolly edge trim (brushed nickel)
Mapei Keracolor U grout with polymer additive
Mapei Ultraflex LFT large-format thinset
Penetrating grout sealer (TileLab)
